Industrial Digital Ultrasonic Cleaning/Washing Machine for Electronic Products
Digital Ultrasonic Cleaning/Washing Machine For Electronic products
JP-240sT(digital, 77L)
Skymen digital Ultrasonic Cleaner (with digital Timer & Heater)
How to choose a suitable machine?
- For small parts cleaning, like PCB, electronic parts, etc., Skymen has 2-30L standard models in stock

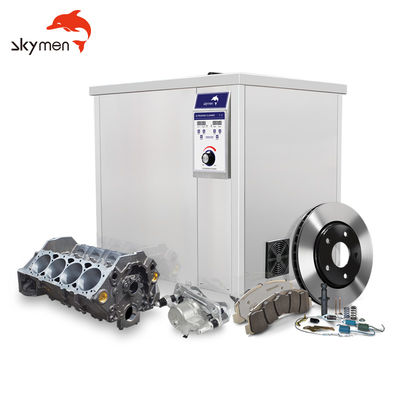

- For large parts cleaning, like car parts, engine block, cylinder heads, etc., Skymen welcomes customized machines
Applications
Medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop
Features
- Stainless steel tank has resistance to wear and long work life
- Tank capacity: 77L, with digital timer & heater control

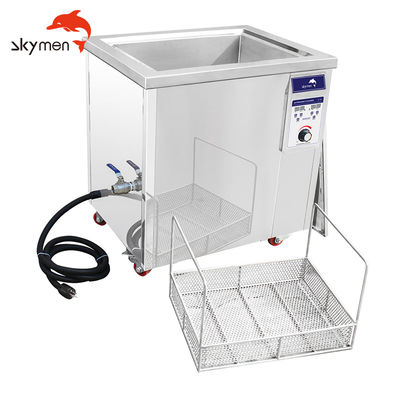

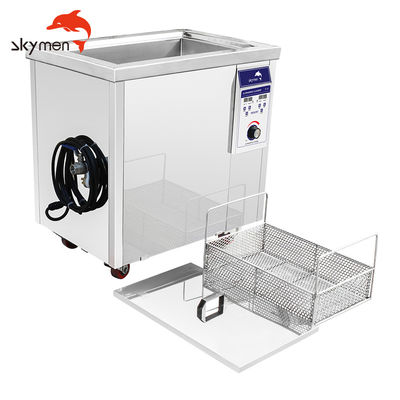

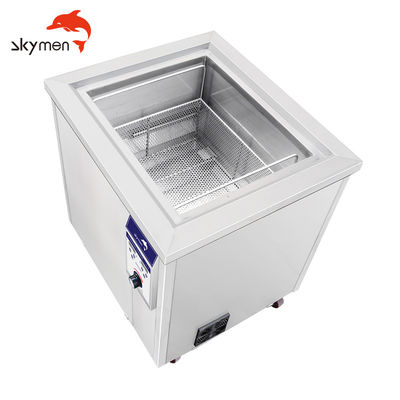

- With Stainless steel basket
- Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
- Industrial control chip microcontroller. Flexible circuit boards control, more secure & stable
- Temperature tunable from 20° C to 95° C
- Certification: CE & RoHS
Ultrasonic Cleaner Specifications
| Ultrasonic Frequency |
40,000 Hz |
| Material |
Stainless Steel SUS304 |
| Tank Capacity |
77 L |
| Timer |
1-99minutes, digital timer |
| Power Supply |
AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
| Ultrasonic Power |
1200W |
| Heating Power |
3000 W, Digital Heating |
| Unit Size |
550 x400 x 350 mm ( L x W x H ) |
| Tank Size |
780 x 600 x 805 mm ( L x W x H ) |
| N.W. |
2.6 kg |
Skymen - China manufacturer of ultrasonic cleaners, factory price for you
About Ultrasonic Cleaner
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: Above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminants adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirt, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on.
Applied to Industry
Electronics, machinery, auto industry, motor industry, optical industry, watchmaker, jewelry maker, plating & painting industry, food industry, medical & pharmacy, textile industry, office and household...
Why Choose Skymen?
- Skymen is a manufacturer of ultrasonic cleaner, specialized in R&D and manufacturing ultrasonic cleaners
- Skymen provides factory price with best quality, seeks for win-win cooperation
- Skymen guarantees the products' quality, provides 1 year warranty, free parts will be sent during the year
- Skymen meets the CE standard
Product Options
- Mini portable ultrasonic cleaner - households series (600ml, 750ml, 2500ml)
- Mechanical ultrasonic cleaner (2-10L)
- Digital ultrasonic cleaner (2-10L)
- Custom made ultrasonic cleaner (>30L)
Quality Control
- Raw Material Inspection: QC and engineers would make strict inspection of the raw material step by step to ensure quality product
- Sales checking: We salesman would also check the production process to ensure machine 100% according to the sample
- 100% product inspection: 100% products checking during production, Each unit would be under testing at least 4hours before packed
- We always try to do perfect: Everyone in Skymen would try best to solve problems together with you
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 10 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
Frequently Asked Questions
Q: What cleaning solution should I use?
A: A Large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: How about after sales services?
A: 1 Year warranty for skymen ultrasonic. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
