| モデル番号: | JP-1936st | 頻度: | 40KHz/28KHz |
|---|---|---|---|
| 力: | 0-46.8kw | 火力: | 66kw |
| 正味重量: | 4000kg | 総重量: | 4300kg |
| 容量: | 7280L / 2000ガロン | タンクサイズ: | 3.5*1.6*1.3m |
| ユニットサイズ: | 390*200*200cm | パッケージサイズ: | 400*210*210cm |
| 材料: | ステンレス鋼SUS304 | タンクの厚さ: | 3mm |
| 超音波パワー: | 46800W | 温度の設定: | 室温〜95°C調整可能 |
| バスケットの負荷: | 2000kg | ||
| ハイライト: | 2000 gallon ultrasonic cleaner,ultrasonic cleaner for AC coils,industrial ultrasonic cleaner with heater |
||
| Model | JP-1923ST |
|---|---|
| Function | Ultrasonic cleaning |
| Ultrasonic Frequency | 28/40kHz (customizable) |
| Tank Material | SUS 304 (SUS 316 customizable) |
| Tank Thickness | 3mm |
| Inner Dimensions | 3500×1600×1300mm |
| Capacity | 7280L |
| Transducers | 936pcs |
| Ultrasonic Power | 46800W |
| Heating Power | 66000W |
| Ultrasonic Timer | 0-99 hours |
| Temperature Range | Room temperature to 95°C adjustable |
| Drain Valve | Included |
| Water Inlet/Outlet | Included |
| Generators | 26 sets (1800W each) |

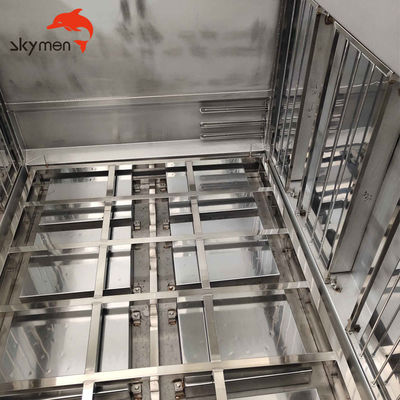

| Basket Capacity | 2000KG |

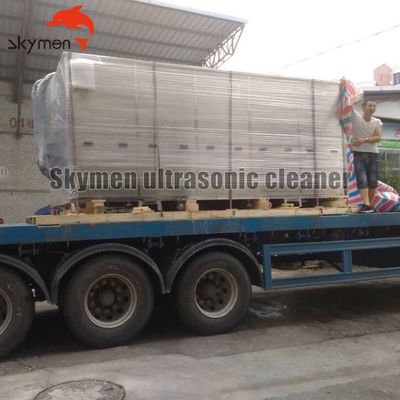

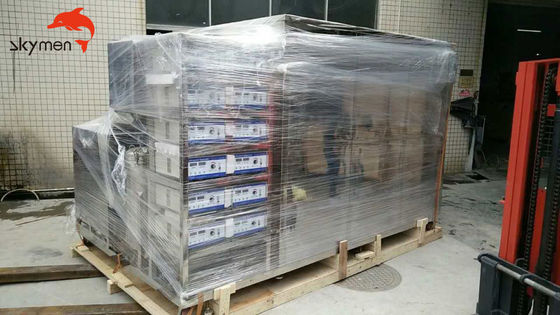

| Packing Dimensions | 400×210×210cm (wooden case) |
| Weight | 4000KG (N.W.) / 4300KG (G.W.) |
| Power Supply | 380V 3 phase; 220V 3 phase; 415V; 600V |
| Warranty | 1 year parts warranty with lifetime technical support |
| Certifications | CE, RoHS, FCC, REACH |
| Lead Time | 20-30 working days after deposit |
Skymen Cleaning Equipment Shenzhen Co. Ltd. has specialized in ultrasonic cleaning technology for over 13 years. Our product range includes household cleaners, benchtop stainless steel units, and industrial-scale systems. With dedicated R&D teams, we develop customized solutions and welcome collaborative product development.
We offer 12 months warranty on all SKYMEN ultrasonic cleaners. During this period, we provide free replacement parts and technical support. Continued technical assistance is available after the warranty period.
Ultrasonic cleaning is generally safe for most components. However, the powerful implosion effects (thousands per second) require careful observation in some applications to ensure part integrity.
