| 頻度: | 40KHz/28KHz | 力: | 0-57600W |
|---|---|---|---|
| 火力: | 69000W | 正味重量: | 5000kg |
| 総重量: | 5300kg | 容量: | 8300L |
| タンクサイズ: | 2500*2000*1700mm | ユニットサイズ: | 300*250*240cm |
| パッケージサイズ: | 310*260*250cm | 材料: | ステンレス鋼SUS304 |
| タンクの厚さ: | 3mm | トランスデューサー数: | 1152pcs |
| 温度範囲: | 室温〜95°C | バスケットの負荷: | 2000kg |
| 発電機力: | 1800w | ||
| ハイライト: | industrial ultrasonic cleaner 8500L,ultrasonic cleaner for auto parts,large capacity ultrasonic cleaner |
||
| Model | JP-11152ST |
|---|---|
| Function | Ultrasonic cleaning |
| Ultrasonic Frequency | 28/40kHz (customizable) |
| Tank Material | SUS 304 (SUS 316 customizable) |
| Tank Thickness | 3mm |
| Inner Dimensions | 2500×2000×1700mm |
| Capacity | 8500L |
| Transducers | 1152pcs |
| Ultrasonic Power | 57600W |
| Heating Power | 69000W |
| Ultrasonic Timer | 0-99 hours |
| Temperature Range | Room temperature to 95°C adjustable |
| Basket Load Capacity | 2000KG |
| Overall Size | 300×250×240cm |
|---|---|
| Packing Size | 310×260×250cm |

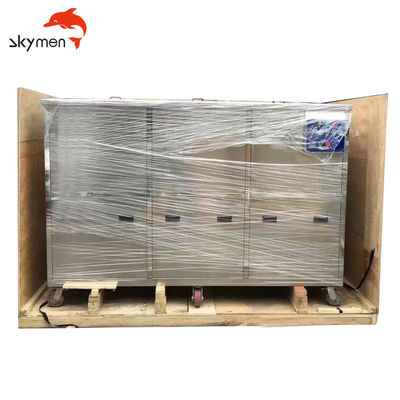

| Packing Method | Wooden case (No logs, fumigation-free) |
| Net/Gross Weight | 5000KG/5300KG |
380V 3 phase; 220V 3 phase; 415V; 600V
20-30 working days after deposit
| Filtration cycle system | Available |
| Basket lifting system | Available |
| Dunking system | Available |
| Bubbling system | Available (requires air compressor) |
| Electrolysis | Available |
| Cooling system | Available |
| Constant temperature | Available |
| Roller barrel | Available |
| Anti-explosion electric box | Available |
| Deionized (DI) water | Available |
| Multi-frequency options | Available (28/40/20/68/80/132KHz) |
For parts with significant dirt accumulation, we recommend pre-cleaning through dipping or spraying before ultrasonic cleaning for optimal results. When cleaning small items or complex-shaped parts, using a cleaning net or rotating the object during ultrasonic treatment ensures even cleaning.
Skymen Cleaning Equipment Shenzhen Co. Ltd. has specialized in ultrasonic cleaning technology for over 13 years. Our product range includes household ultrasonic cleaners, benchtop stainless steel models, and industrial-scale systems. With a dedicated R&D team, we continuously innovate while welcoming customer collaboration on new product development.
We offer a 12-month warranty on all Skymen ultrasonic cleaners. During this period, we provide free replacement parts for any technical issues and door-to-door service. Technical support continues beyond the warranty period.
Ultrasonic cleaning is generally safe for most components. However, the powerful implosion effect (thousands per second) requires careful observation in certain applications to ensure part integrity.
